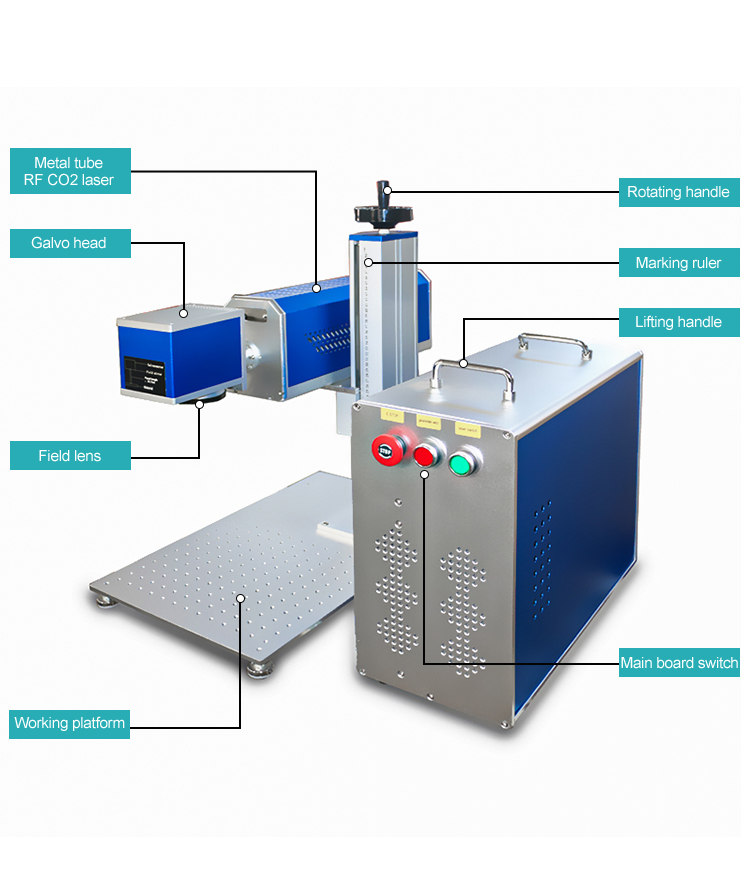

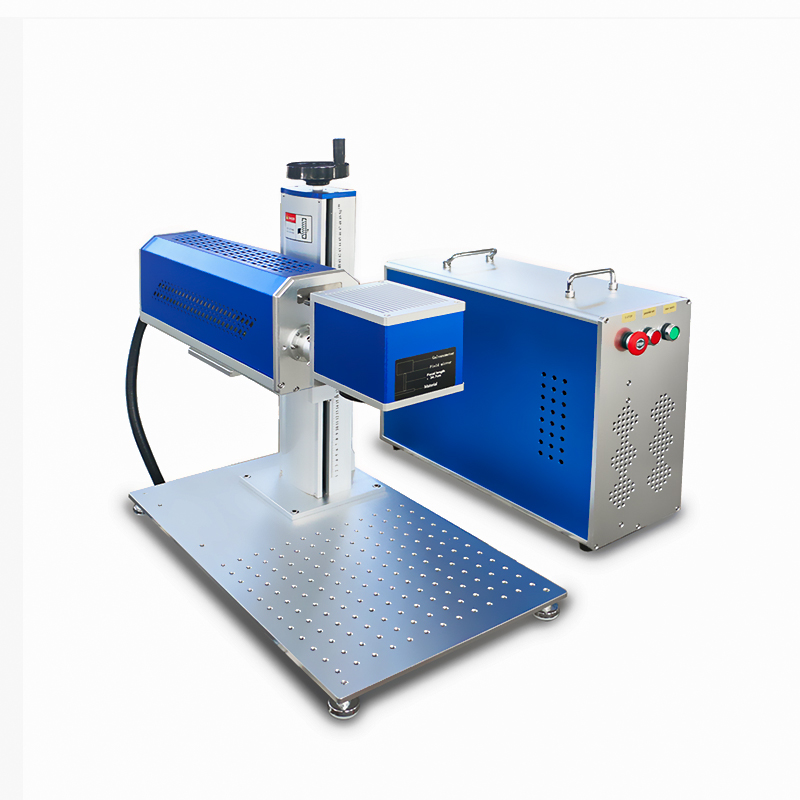

Laser Type:CO2 RF Laser Marking Machine
Working Area:110x110/200x200/300*300mm (Opitional)
Laser Power:20W/30W
Laser Wavelength:10.6um
Marking Speed:7000mm/s
Beam Diameter:<2.4mm
SUNWAY CO2 RF laser marking machine is a gas laser with CO2 as laser medium and wavelength near 10.6um. When high voltage is added to electrodes, discharging through the cavity will excite CO2 molecules and produce 10.6um laser radiation. The laser can be directed to process materials.
Laser Type | CO2 RF Laser Marking Machine |
Working Area | 110x110/200x200/300*300mm(Opitional) |
Laser Power | 20W/30W |
Laser Wavelength | 10.6um |
Marking Speed | 7000mm/s |
Beam Diameter | <2.4mm |
Repeated Precision | ±0.01mm |
Divergence Angle | <7mrad |
Power Stability | (8h) <±1%rms |
Working Voltage | 110V/220V±10% |
Cooling Mode | Air Cooling |
Optional Parts | Rotary DeviceLift Platform.Other Customized Automation |
Package | Plywood |
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ?
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ?
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
