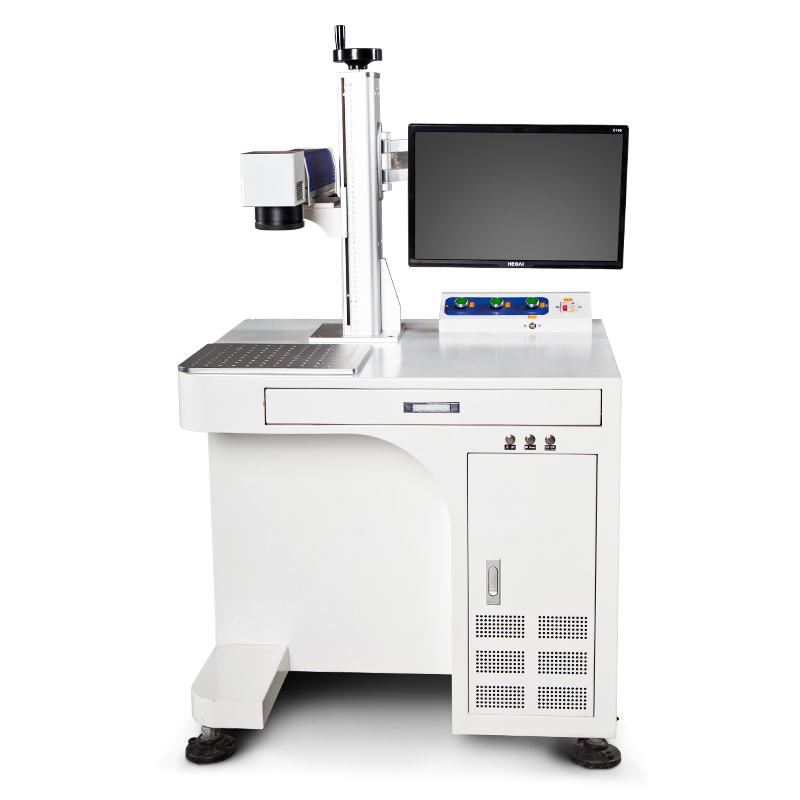

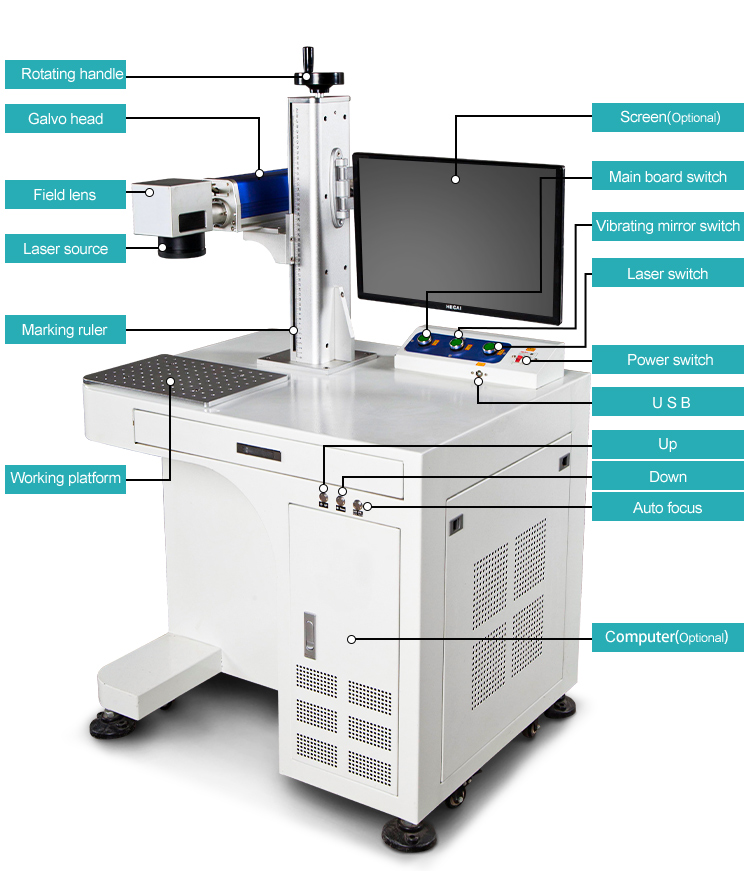

Sunway Cabinet Type Fiber Marking Machine
Model: Sunway Cabinet Type Fiber Marking Machine
Laser type: Fiber Laser
Laser power: 20/30/50/70/100W
Application: metal and nonmetal
Marking depth: ≤1.2mm
Resolution ratio: <4500DPI
Sunway Cabinet Optical Fiber Marking Machine :
1. Easy and quick installation, USB connected with computer easily.
2. Low Cost: high turnover ratio between electricity and laser, the whole machine power
consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Free-Maintenance Operation: There is no need of any maintenance for laser, or cleaning the
lens.
4. Long Service Life: The laser metal engraving machine adopts laser diode as pumping source,
the working hours can reach as long as 100,000 hours.
|
Product Name |
Laser MarkingMachine |
|
Laser Power |
20/30/50/70/100W |
|
Laser Source Brand |
JPT(Raycus/IPG/Maxoptional) |
|
Marking Area |
110*110mm/200*200mm/300*300mmor more |
|
Wavelength |
1064nm |
|
Pulse Width |
Adjustable |
|
Control System |
EZCAD Software FromJCZ |
|
ControllingSoftware |
EZCAD |
|
SupportedGraphic Formats |
AI，BMP，DST，DWG，DXF，DXP，LAS，PLT |
|
MarkingSpeed |
7000mm/s |
|
CoolingMode |
Air cooling--Built-in |
|
OperationEnvironment |
5℃~35℃ |
|
Power Supply |
220V/50HZor110V/60HZ(+-10%) |
|
Operation System |
WinXP/7/8/10(32bit64bit) |
|
Warranty |
2 year |
|
Optional Parts |
Rotary Device,Lift PlatformOther Customized Automation |
|
Package |
Plywood |
A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
