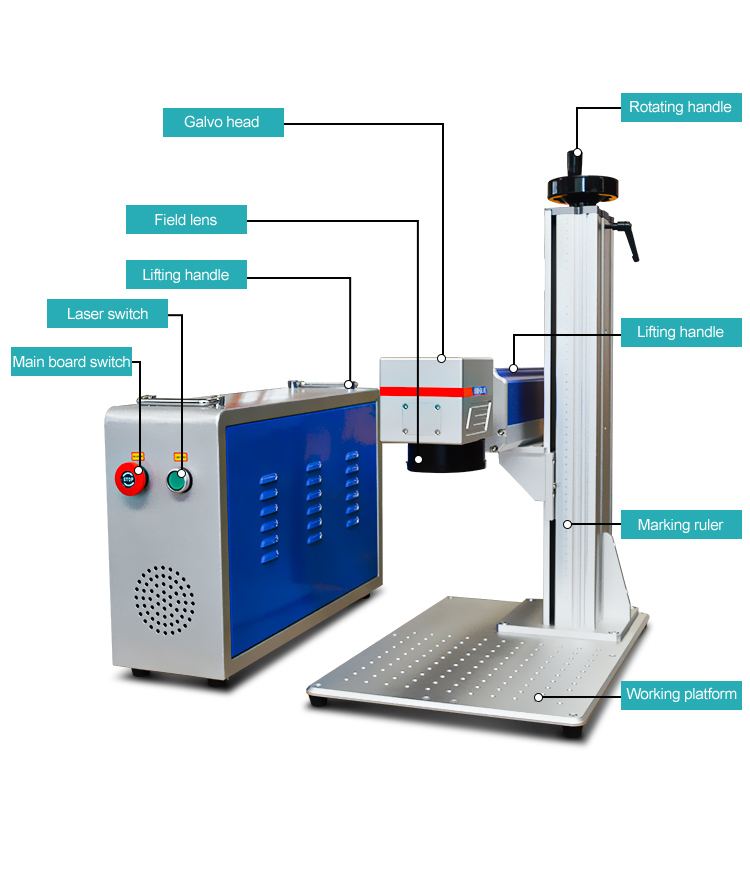

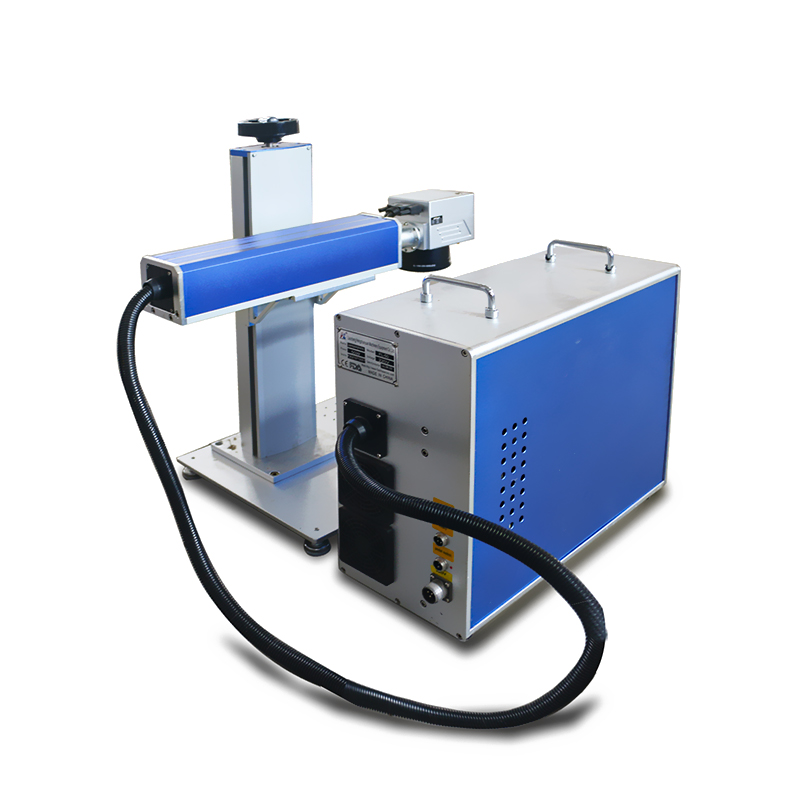

Sunway Split Fiber Laser Marking Machine
Model: Sunway Split Fiber Marking Machine
Laser type: Fiber Laser
Laser power: 10/20/30/50/100W
Application: metal and nonmetal
Beam Quality:m²<1.5
Marking Speed:8000mm/s
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance. No need to spare any extra consumer parts at all. Suppose you will work for 8 hours per day, 5 days a week. A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity.
2. Multi-functional
It could Mark/Code/Engrave un-removable serials numbers, batch numbers, expiry info, best before date, logo&any characters that you want. It could also mark QR code.
|
Fiber marking area |
110*110mm |
|
Fiber laser source brand |
Raycus |
|

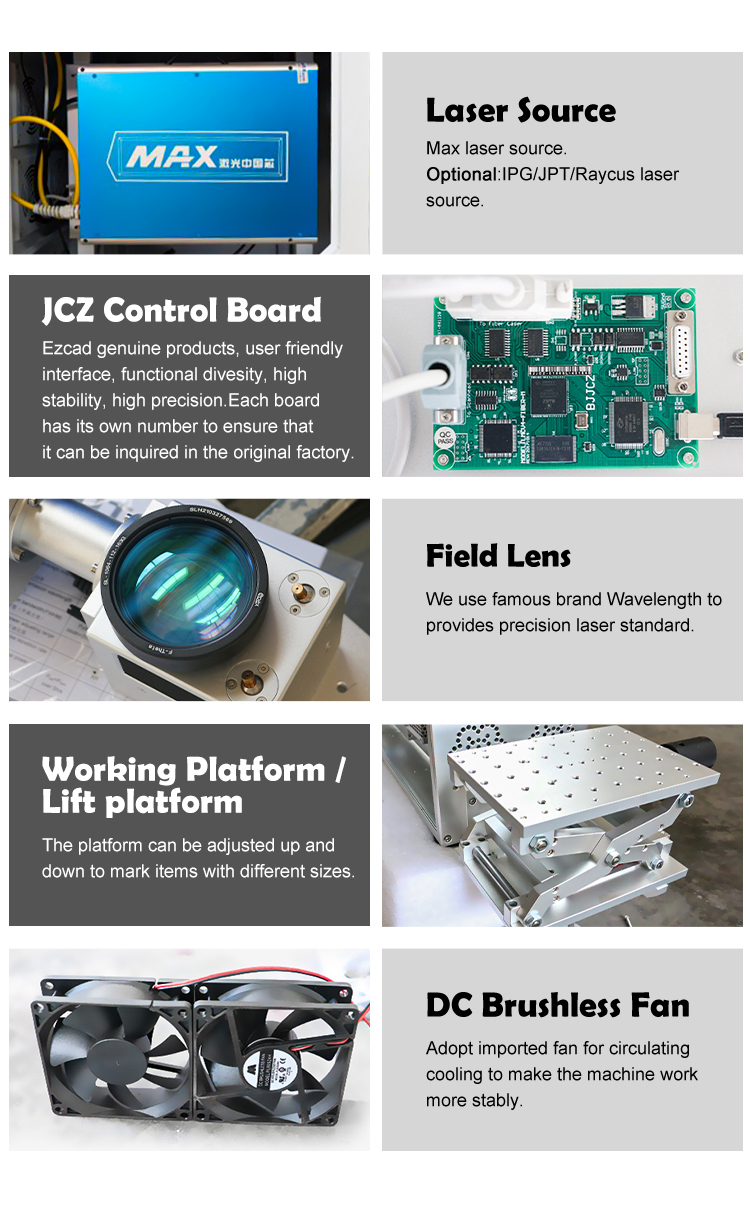

Field lens |
110*110/150*150/200*200/300*300mm (optional) |
|
Fiber power |
10/20/30/50/100W |
|
Cooling way |
Air cooling |
|
Laser wavelength |
1064nm |
|
Computer operating system |
WindowXP/Window7/W8/W10 |
|
Support graphical format |
Support AI,PLT, DXF, BMP,DWG,DXP,LAS file, etc |
|
Computer software |
CorelDraw, AutoCAD,Adobe Illustrator, etc |
|
Data Transfer |
USB2.0 transmission |
|
Laser Frequency |
20-100KHz |
|
Marking speed |
0-7000mm/s |
|
Marking thickness |
0-1mm |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.15mm |
|
Operating voltage |
AC220V 10%/50Hz-60Hz, AC110V (optional) |
|
Power requirement |
<500W |

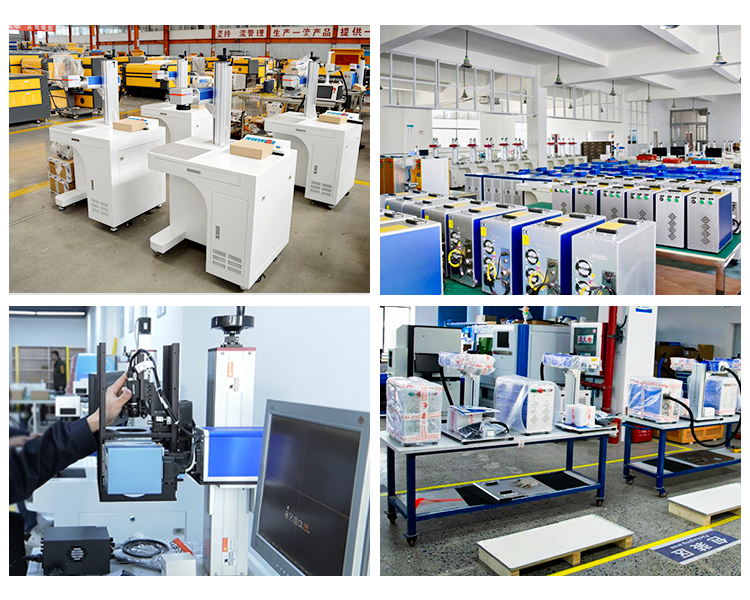

A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
