LASER MARKING CUTTING ENGRAVING
WUXI SUNWAY TECHNOLOGY CO., LTD.

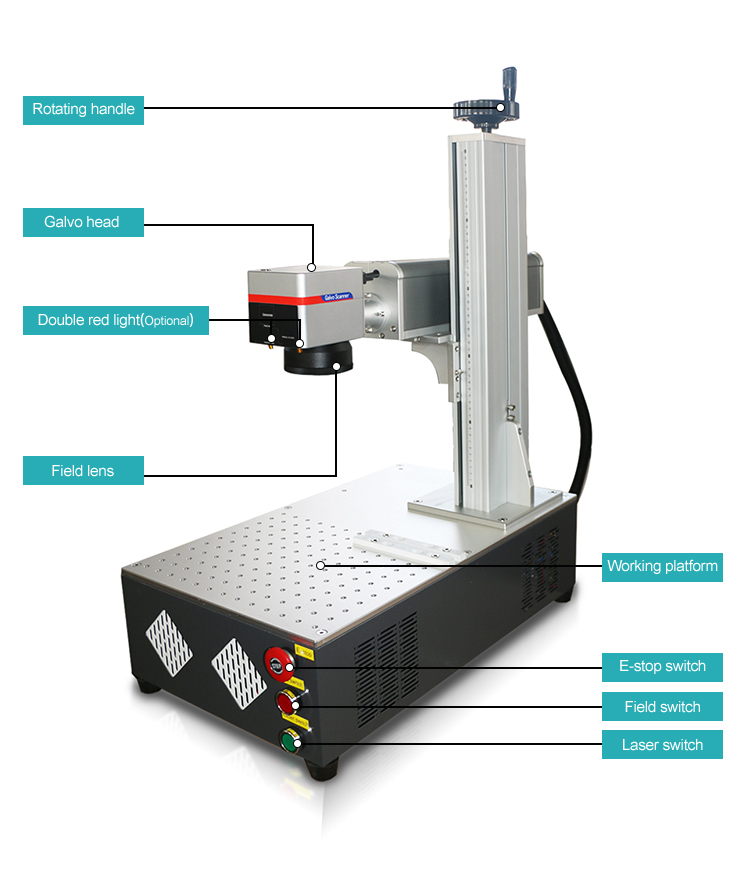

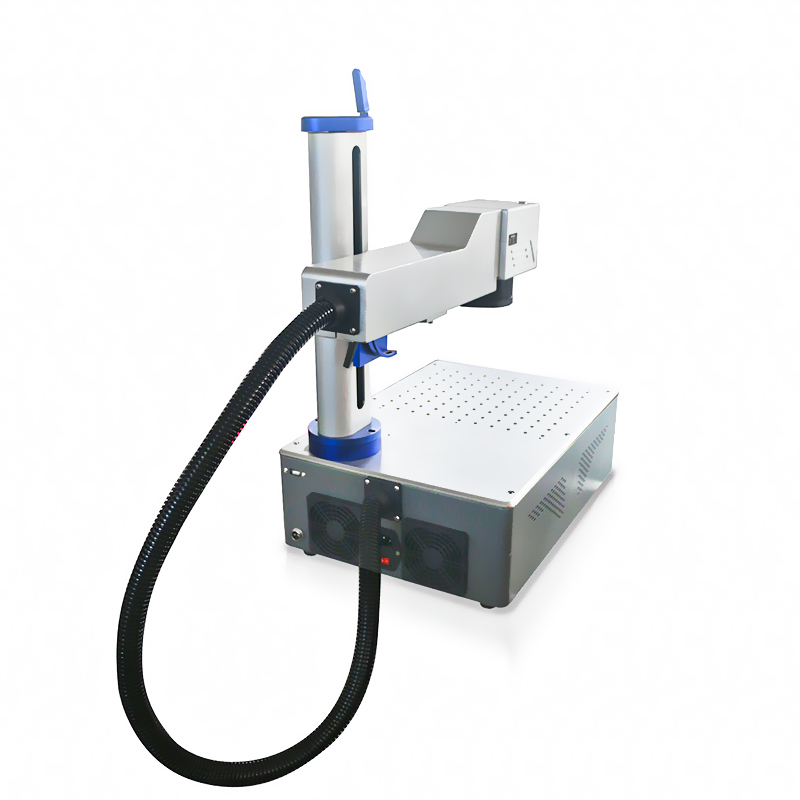

Sunway Desktop Type Fiber Marking Machine
Model: Sunway Desktop type Fiber Marking Machine
Laser type: Fiber Laser
Laser power: 10/20/30/50/100W
Application: metal and nonmetal
Fiber marking area: 110*110mm
Laser Frequency: 20-100KHz
Advantages
1.mini laser marking machine Fast marking Speed and High Efficiency
2.High Electro-optic Conversion Efficiency
3.Perfect marking effect
4.Integrated structure,small and compact size,less occupied area,easy transportation
Characteristics
1.Multiple power laser light source, available for many industries;
2.Fast speed, high efficiency, stable output power, high reliability;
3.Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
4.High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;
5.Small and compact size, easy to carry, save production space
|
Fiber marking area |
110*110mm |
|

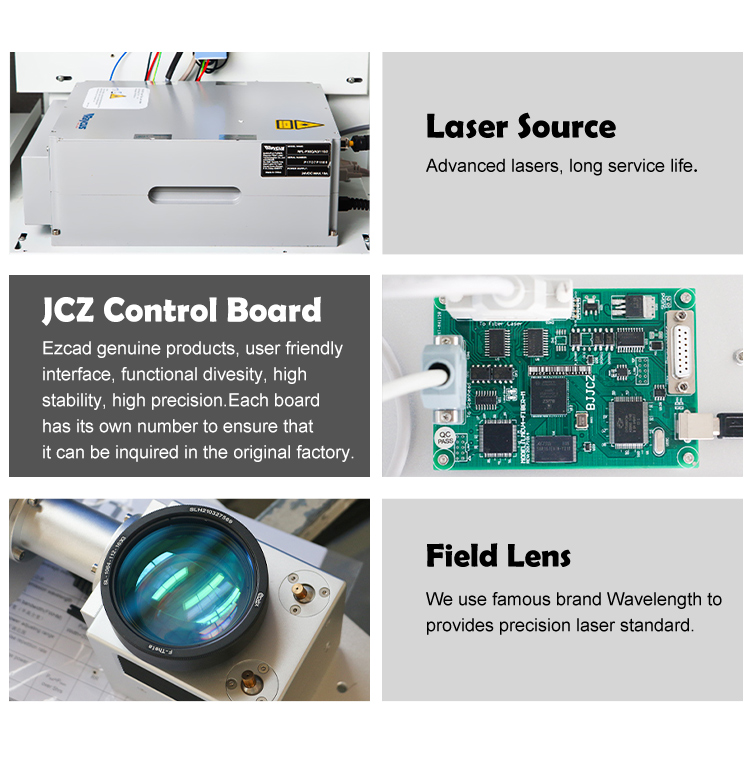

Fiber laser source brand |
Raycus |
|
Field lens |
110*110/150*150/200*200/300*300mm (optional) |
|
Fiber power |
10/20/30/50/100W |
|
Cooling way |
Air cooling |
|
Laser wavelength |
1064nm |
|
Computer operating system |
WindowXP/Window7/W8/W10 |
|
Support graphical format |
Support AI,PLT, DXF, BMP,DWG,DXP,LAS file, etc |
|
Computer software |
CorelDraw, AutoCAD,Adobe Illustrator, etc |
|
Data Transfer |
USB2.0 transmission |
|
Laser Frequency |
20-100KHz |
|
Marking speed |
0-7000mm/s |
|
Marking thickness |
0-1mm |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.15mm |
|
Operating voltage |
AC220V 10%/50Hz-60Hz, AC110V (optional) |
|
Power requirement |
<500W |
A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
