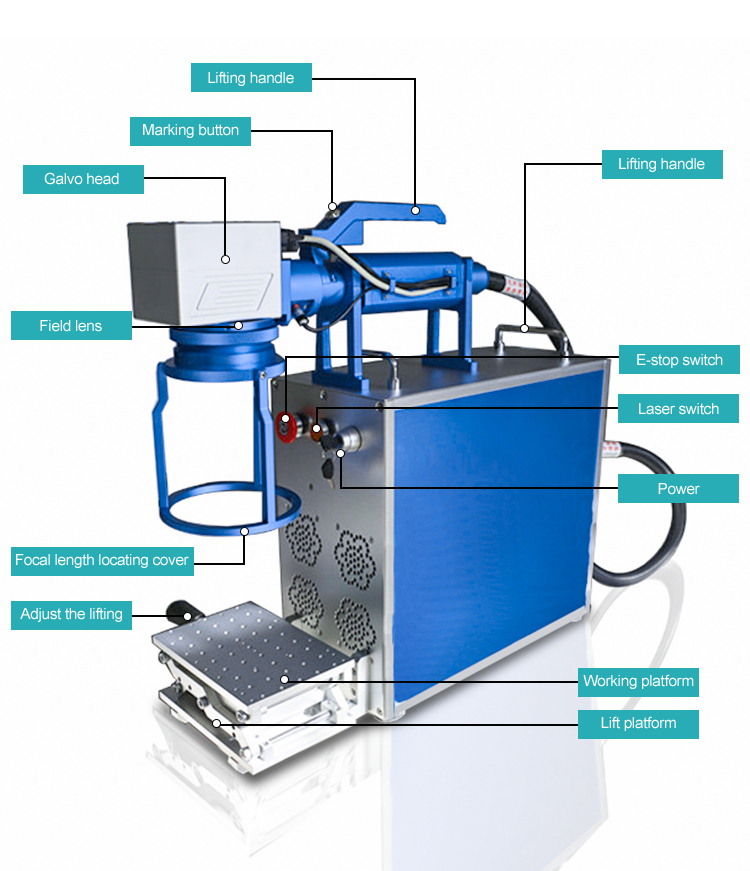

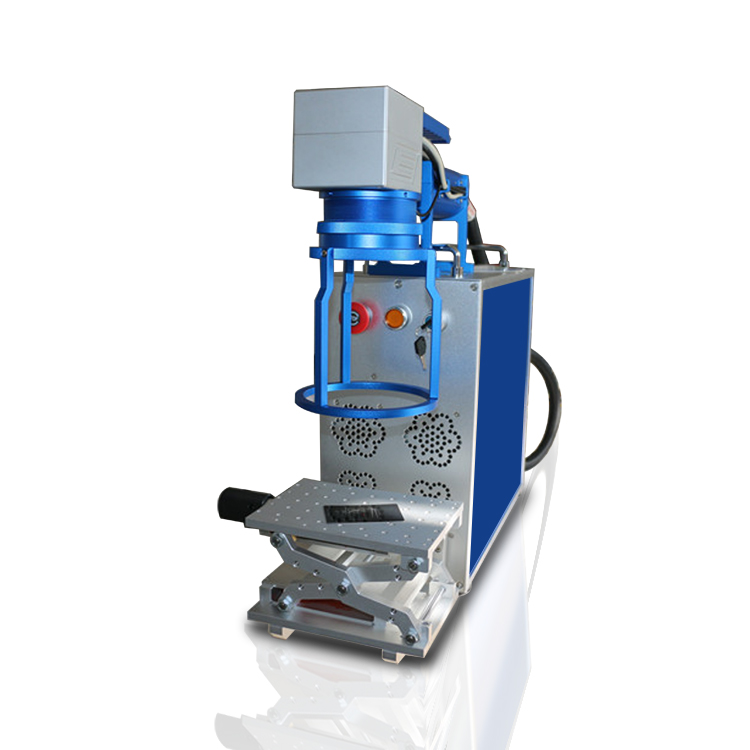

Sunway Handheld Fiber Marking Machine
Hand-held laser marking machine is a type of compact laser engraving system with JPT fiber laser source, which is easy to place and move. It adopts a unique integrated and fully built-in design, highly integrated optical, electronic and mechanical components, and a fully air-cooled design without external circulation cooling devices.
It is an upgraded version of the desktop laser engraver. The principle is to use a laser beam to make permanent marks on the surface of various materials. Portable laser engraving machine has the features of small size (air cooling without water cooling device), good laser beam quality (base mode), and maintenance-free.
|
Fiber marking area |
110*110mm |
|

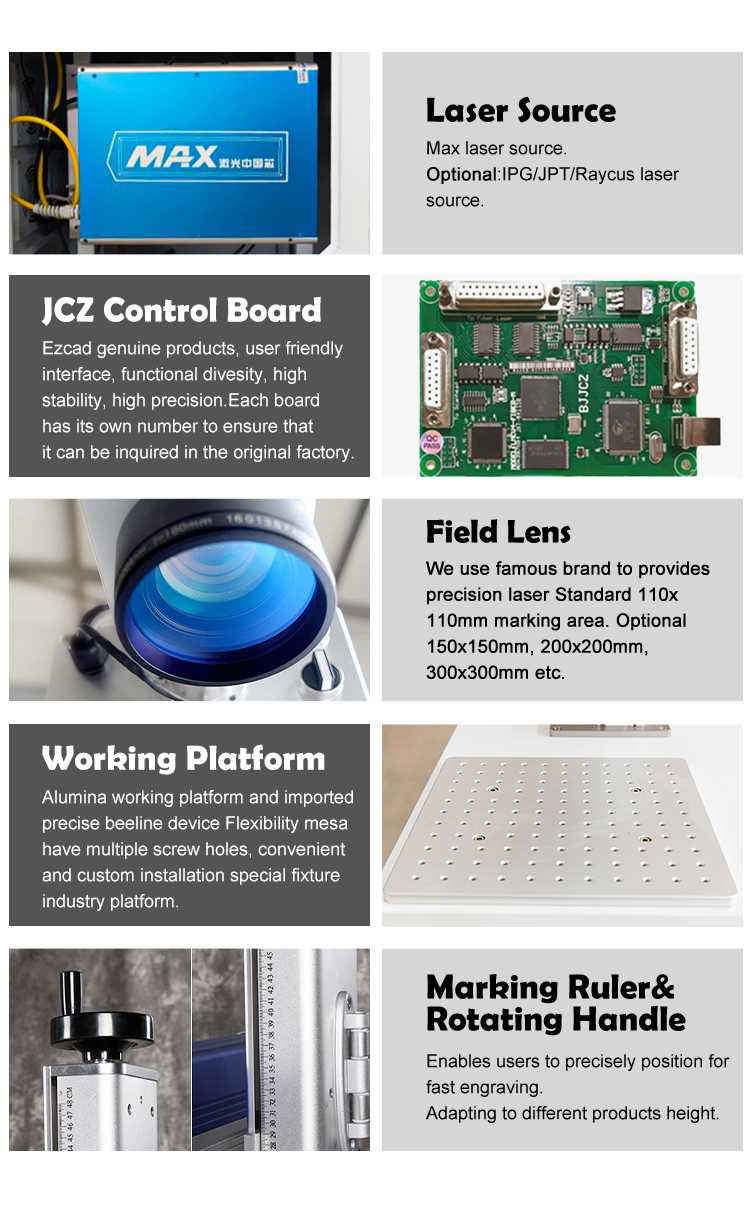

Fiber laser source brand |
Raycus |
|
Field lens |
110*110/150*150/200*200/300*300mm (optional) |
|
Fiber power |
10/20/30/50/100W |
|
Cooling way |
Air cooling |
|
Laser wavelength |
1064nm |
|
Computer operating system |
WindowXP/Window7/W8/W10 |
|
Support graphical format |
Support AI,PLT, DXF, BMP,DWG,DXP,LAS file, etc |
|
Computer software |
CorelDraw, AutoCAD,Adobe Illustrator, etc |
|
Data Transfer |
USB2.0 transmission |
|
Laser Frequency |
20-100KHz |
|
Marking speed |
0-7000mm/s |
|
Marking thickness |
0-1mm |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.15mm |
|
Operating voltage |
AC220V 10%/50Hz-60Hz, AC110V (optional) |
|
Power requirement |
<500W |

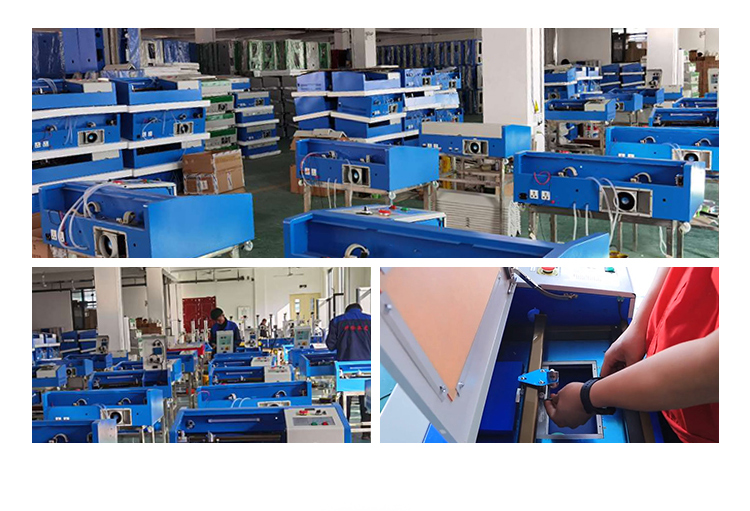

A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
