LASER MARKING CUTTING ENGRAVING
WUXI SUNWAY TECHNOLOGY CO., LTD.

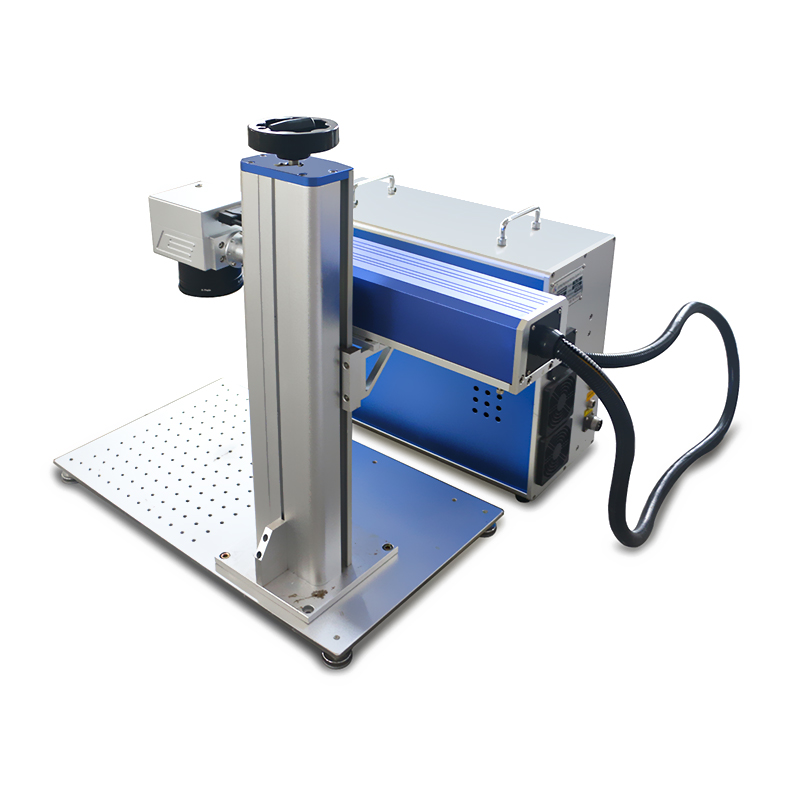

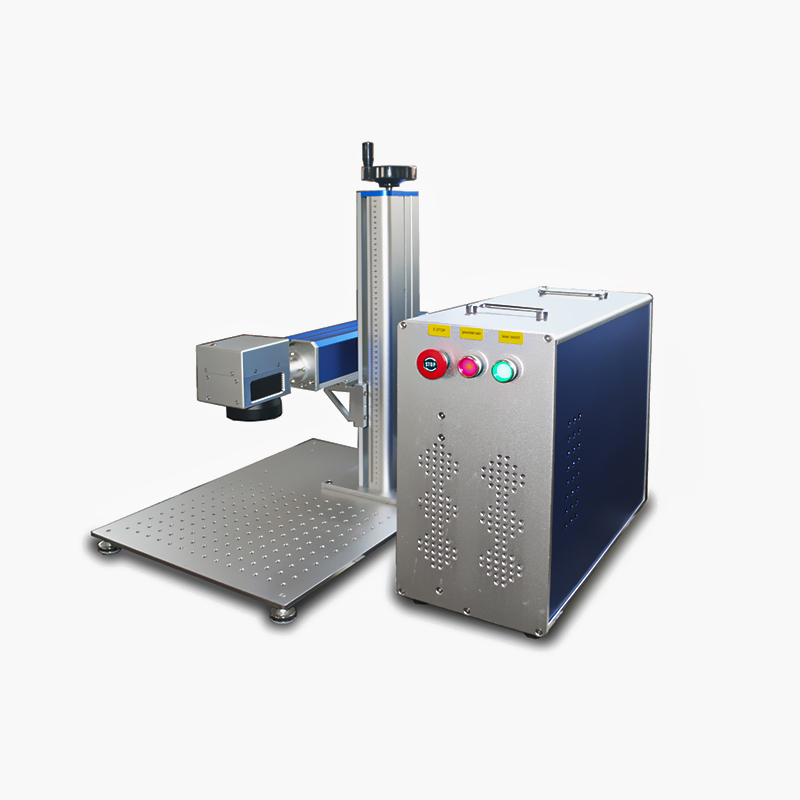

Sunway MOPA Laser Marking Machine
Working Area：110*110/150*150/200*200/300*300(mm)
Laser Power：10W/20W/30W/50W
Laser Wavelength：1064nm
Beam Quality：m²<1.5
Color MOPA laser engraving machine is a type of automatic CNC laser marking system that uses MOPA fiber laser generator to mark colors on stainless steel, titanium, and chromium. MOPA laser marking system uses a high-energy density laser heat source to act on the metal surface to generate colored oxide on the surface, or generate a colorless and transparent oxide film, which presents a colorful effect due to the light interference effect of the film. By controlling the laser energy and parameters, the oxide layers of different thicknesses can present different colors to achieve the purpose of color engraving.
|
Laser Type
|
MOPA Laser Marking Machine
|
| Working Area | 110*110/150*150/200*200/300*300(mm) |
| Laser Power |
10W/20W/30W/50W
|
| Laser Wavelength | 1064nm |
| Beam Quality | m²<1.5 |
| Marking Speed | 7000mm/s |
| Repeated Precision |
±0.003mm
|
| Working Voltage |
220V or 110V (+-10%)
|
| Cooling Mode | Air Cooling |

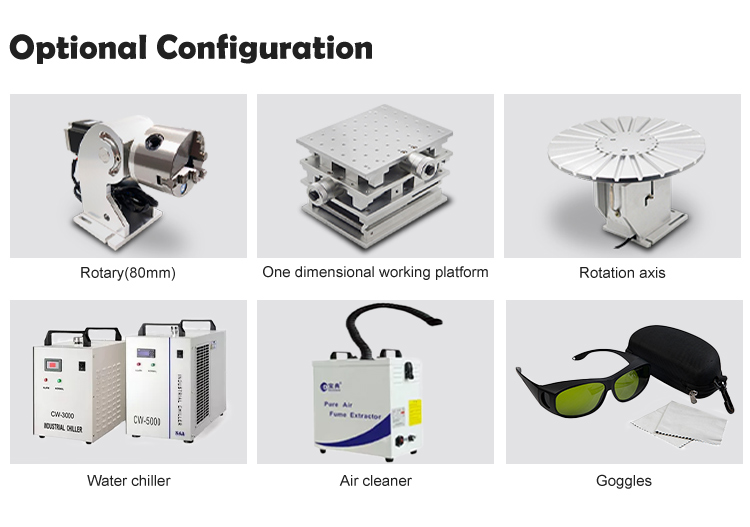

| Optional Parts | Rotary Device, Lift Platform, Other Customized Automation |
| Gross Weight |
65kg
|
| Package | Plywood |
Applicable Materials Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
